CNC PRODUCTS
Descriptions

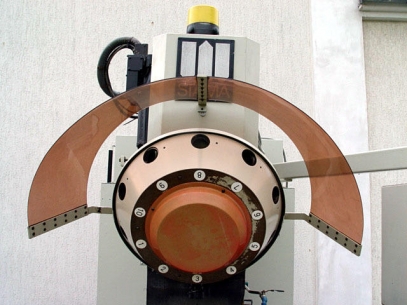

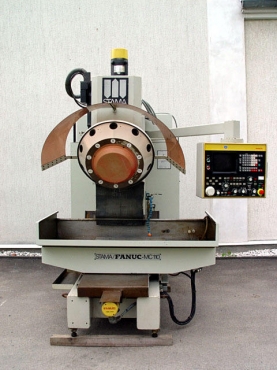

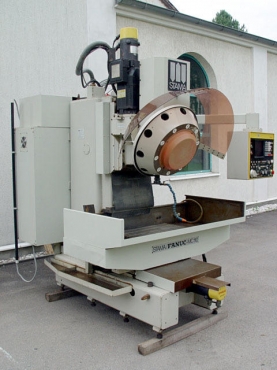

Vertical Milling Machine,
Brand name STAMA
Model: MC110
Year :1987, Refurbished: 2015
Made In Germany
Technical Specifications
X-travel: 500mm
Y-travel: 380mm
Z-travel: 300mm
Table size: 650 x 380mm (19.68")
Number of grooves: 2
Spindle Diameter: 55mm (2.165")
Spindle Speed: 60 - 6000rpm
Tool Holder: SK 30
Tool changer with 10 stations.
Control: New 2015
New Dynomotion Controller (Made in USA)
Current Location: Lebanon
Status: Ready for sale
Note: Ready for Delivery
Descriptions

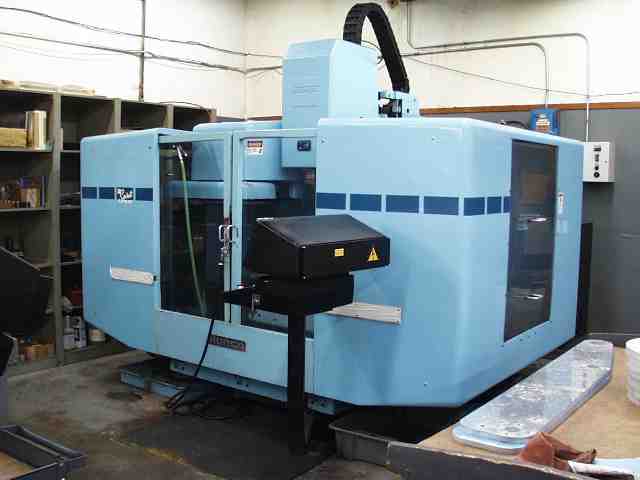

Vertical Milling Machine,
Brand name HURCO
Model: BMC 40 V2
Year :1990, Under Refurbishing
Made In USA
Technical Specifications
• Travel X=1016mm (40")
• Travel Y=762mm (30")
• Travel Z=558.8mm (22")
• Linear Ways
• 100/150Rpm Programmable feeds
• Programming resolution 2.54 Microns (0.0001")
• System resolution 0.4826 Microns (0.000019”)
• Box ways
• Flood coolant
• 10HP 7.5KW Spindle
• Table Length 1313.2 x 701mm (51.7" x 27.6")
• Table Load 1,450Kg (3,300lb)
• 30 ATC Tool Changer, Umbrella Style
• Weight: 9 Ton (20,000Lbs)
Control: New 2015
New Dynomotion Controller (Made in USA)
Picture Taken Before Refurbishing
New Pictures will be uploaded once are ready
Current Location: USA/IL
Status: Ready for sale
Descriptions
Vertical Milling Machine,
Brand name STAMA
Model: MC110
Year :1987, Refurbished: 2015
Made In Germany
Technical Specifications
X-travel: 500mm
Y-travel: 380mm
Z-travel: 300mm
Table size: 650 x 380mm (19.68")
Number of grooves: 2
Spindle Diameter: 55mm (2.165")
Spindle Speed: 60 - 6000rpm
Tool Holder: SK 30
Tool changer with 10 stations.
Control: New 2015
New Dynomotion Controller (Made in USA)
Current Location: Lebanon
Status: Ready for sale
Note: Ready for Delivery
Descriptions

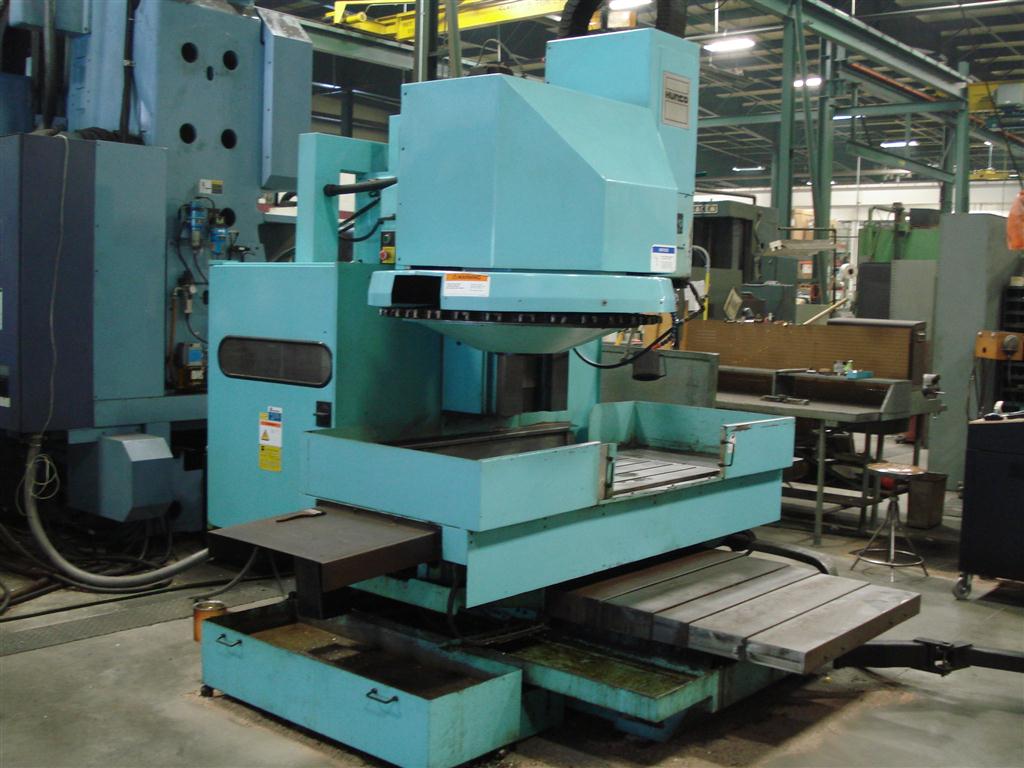

Vertical Milling Machine
Brand name HURCO
Model: SLV 40
Year :1992, Under Refurbishing
Made In USA
Technical Specifications
• Travel X=101.6Cm (40")
• Travel Y=50.8Cm (20")
• Travel Z=63.5Cm (25")
• Linear Ways
• Updated Drives
• Rapids Feed Rate 10,160 mm/Min (400"/Min)
• 100/150Rpm Programmable feeds
• Programming resolution 2.54 Microns (0.0001")
• System resolution 0.4826 Microns (0.000019”)
• Box ways
• Flood coolant
• 15HP 10KW Spindle
• Table Load 500Kg (1100lb)
• Updated Drives
• 24 ATC Tool Changer
• Weight: 7 Ton (15,400Lbs)
Control: New 2015
New Dynomotion Controller (Made in USA)
Picture Taken Before Refurbishing
Descriptions

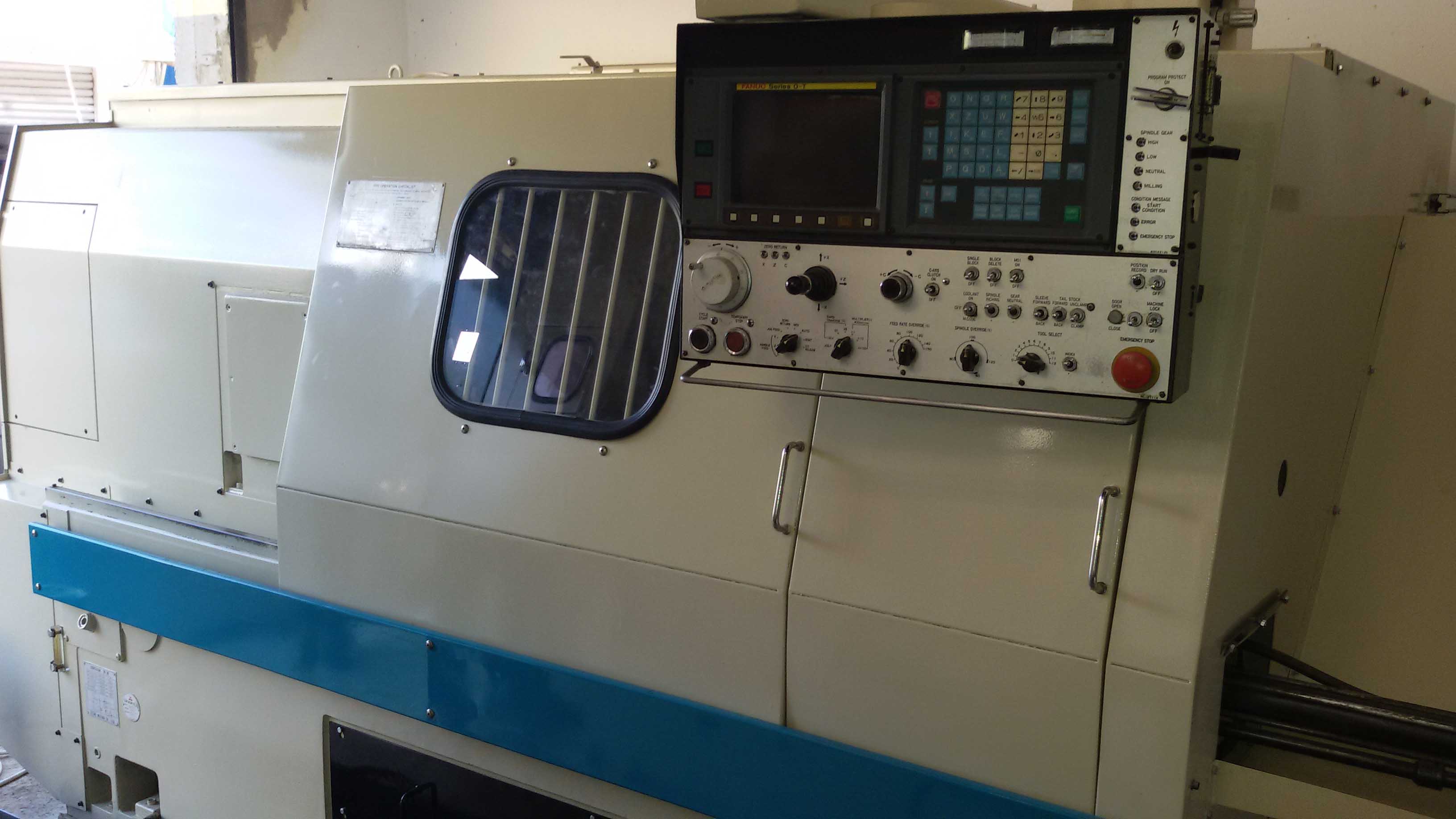

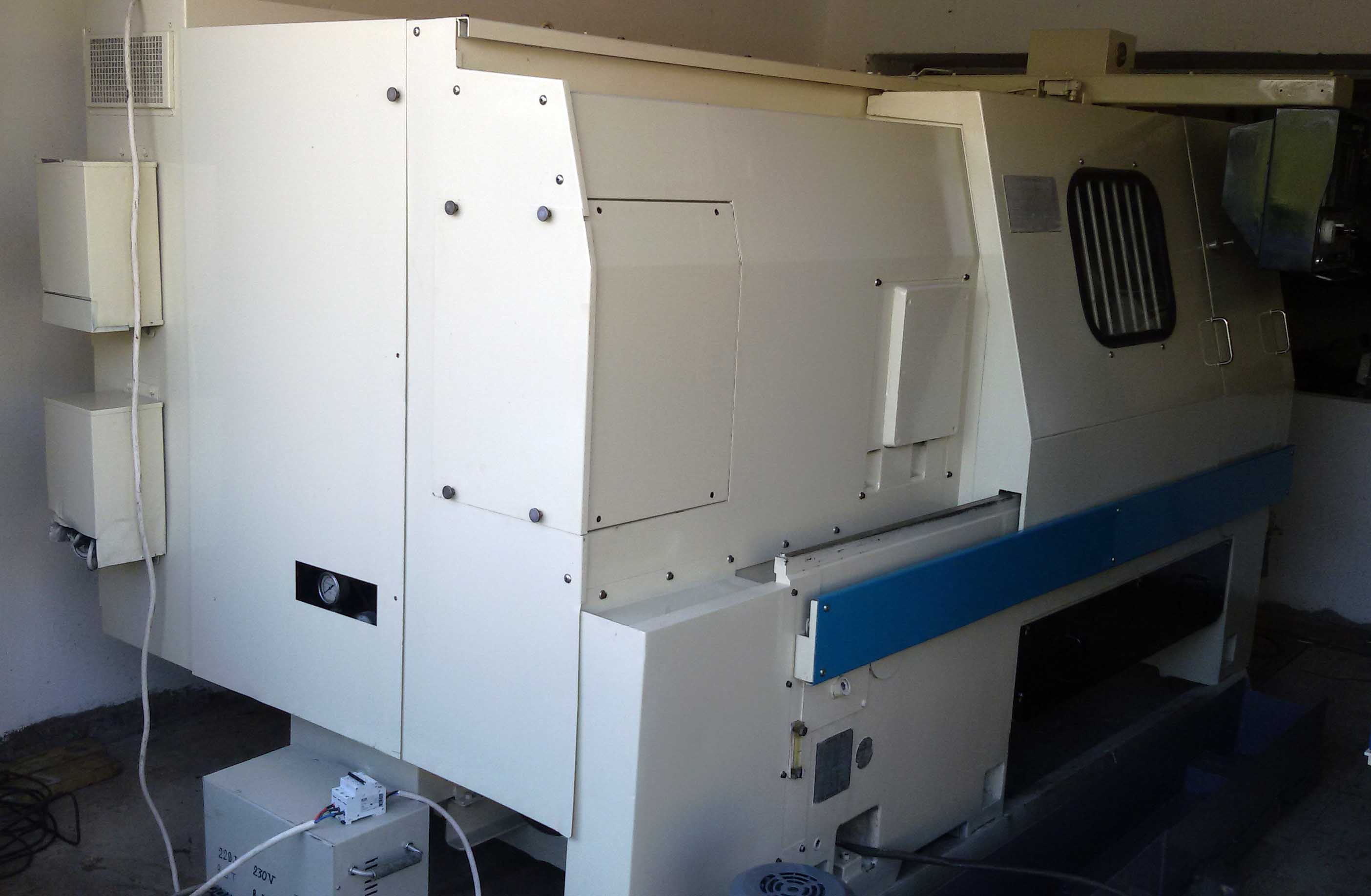

Horizontal Lathe Machine
Brand name WASINO
Model: LJ-6MC
Year :1991, Refurbished: 2015
Made In Japan
Technical Specifications
SWING OVER BED ......................... 17" (431.8mm)
DISTANCE BETWEEN CENTERS ............... 24" (609.6mm)
BAR CAPACITY ........................... 2.5" (63.5mm)
SPINDLE NOSE ........................... A2-8
SPINDLE BORE ........................... 3" (76.2mm)
SPINDLE SPEED LOW RANGE ................ 10-1060 RPM
SPINDLE SPEED HIGH RANGE ............... 35-3500 RPM
CHUCK SIZE ............................. 10" (254mm)
SPINDLE INDEXING ....................... 0.001 C-Axis
X-AXIS TRAVEL .......................... 9-1/2" (241.3mm)
Z-AXIS TRAVEL .......................... 24-3/8" (618mm)

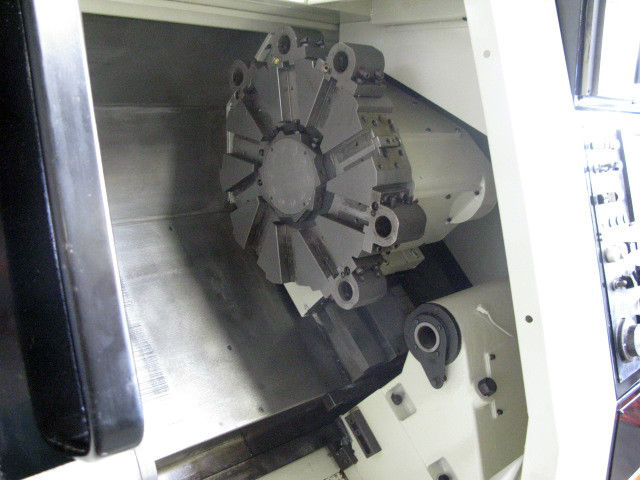

TURRET TYPE ............................ 12 STATION DRUM V12
NUMBER OF TOOLS ........................ 6 TURNING 6 MILLING
TURNING TOOL SIZE ...................... 1" (25.4mm)
MAX. BORING BAR ........................ 2.5" (63.5mm)
MILLING UNIT MOTOR ..................... 3/5 HP
MILLING UNIT SPEED ..................... 35-3000 RPM
MILLING UNIT SHANK DIA. ................ 3/4" (19mm)
TAILSTOCK QUILL DIA. ................... 3-1/8" (79.375mm)
TAILSTOCK CENTER ....................... MT#5
TAILSTOCK QUILL TRAVEL ................. 4" (101.6mm)
MAIN MOTOR ............................. 20/25 HP
APPROX. WEIGHT ......................... 10,700 LBS. (4.853T)
EQUIPPED WITH:
- FANUC 0T CNC CONTROL
- 10" KITAGAWA B210 3-JAW HYD. CHUC
- FULL C-AXIS
- 12 POSITION TURRET
- TAILSTOCK
- (6) ROTARY TOOLHOLDERS
- ALL AVAILABLE STANDARD TOOLHOLDERS
Fanuc 0t Control/RS232 PC Interface compatible with any DNC Fanuc 0t
Current Location: Lebanon
Status: Ready for sale
Note: Ready for Delivery
